Single-Partition Data Disk_Windows

If the host has only one partition created before and uses the NTFS/FAT file system, you can use the following method for expansion.

Notes:

Before performing disk expansion, please confirm that if there is data in the data disk, it is recommended to back up the data first.

A cloud disk can only be expanded when it is in an available state. Since the cloud disk needs to be unmounted, your business will be interrupted, so please operate with caution.

Operation Notes:

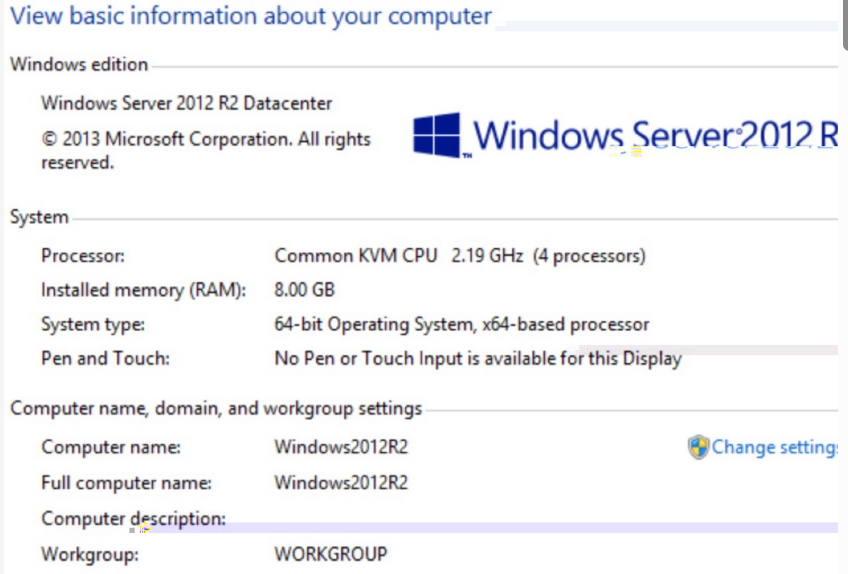

• Version of the environment in this example:

• In this example, the mount point of the cloud disk is Disk1. Please operate according to your actual situation. If the corresponding device is not found, please check the mounting information and status of the cloud disk.

Specific Operations:

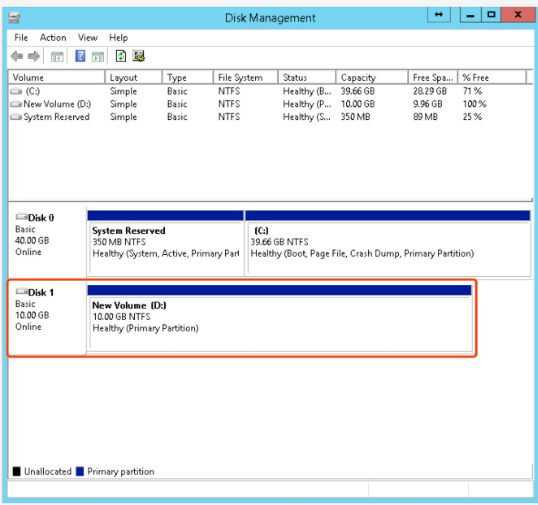

• Check the current mounting situation.

• Unmount the cloud disk in the operating system and console. For specific steps, see the chapter on unmounting cloud disks.

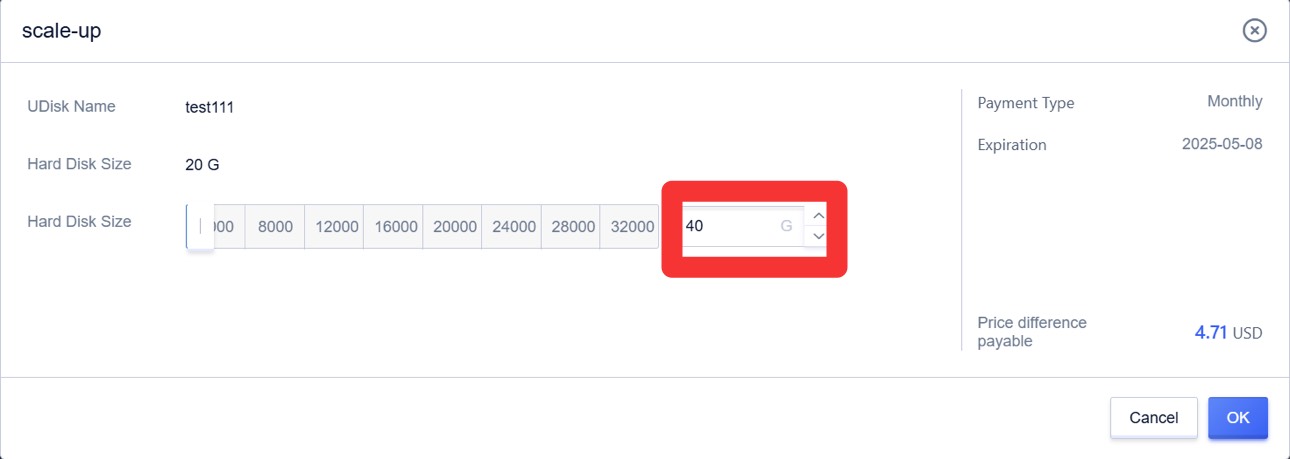

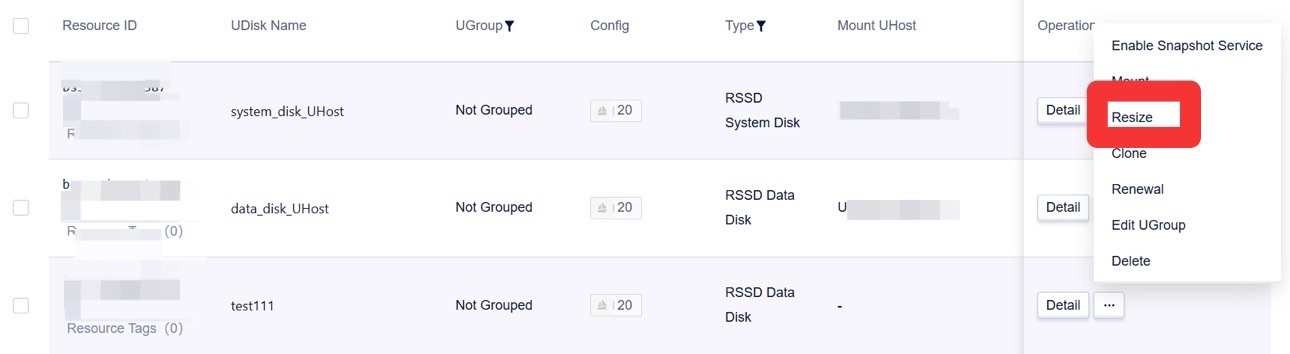

• Expand the cloud disk via the cloud disk console.

• Mount the cloud disk in the console. For specific steps, see the chapter on mounting cloud disks.

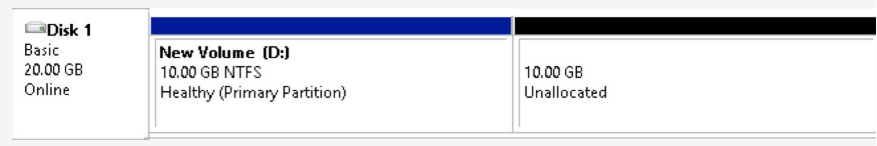

• After mounting is completed, check the disk size in the operating system.

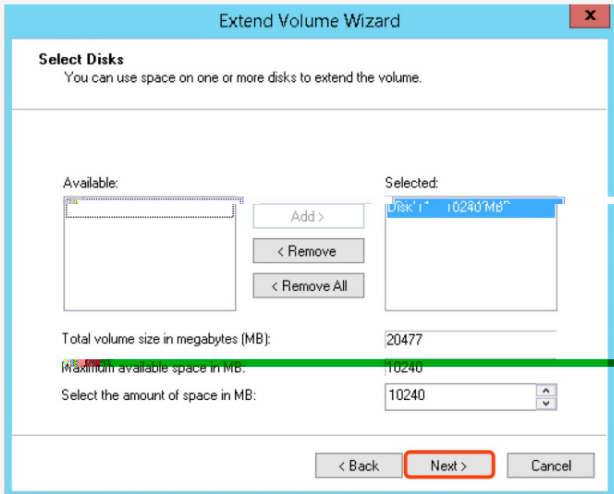

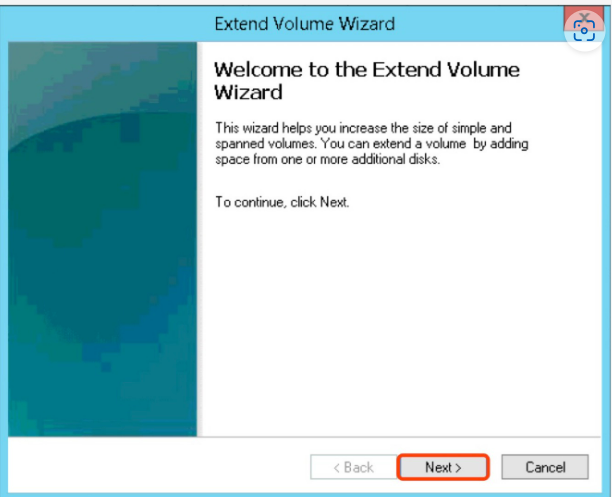

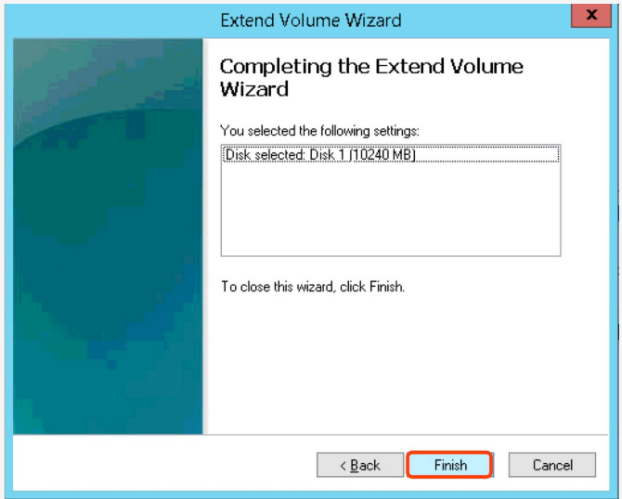

• Right-click the empty area of the new partition D, and select Extend Volume.

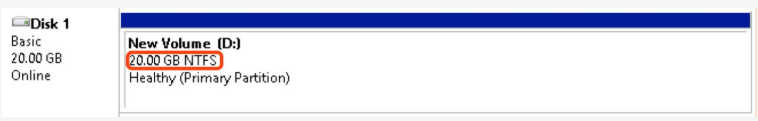

• Check the partition situation after the expansion.
