User Guide

Enable USnap

You can adopt either of the following two approaches to enable USnap:

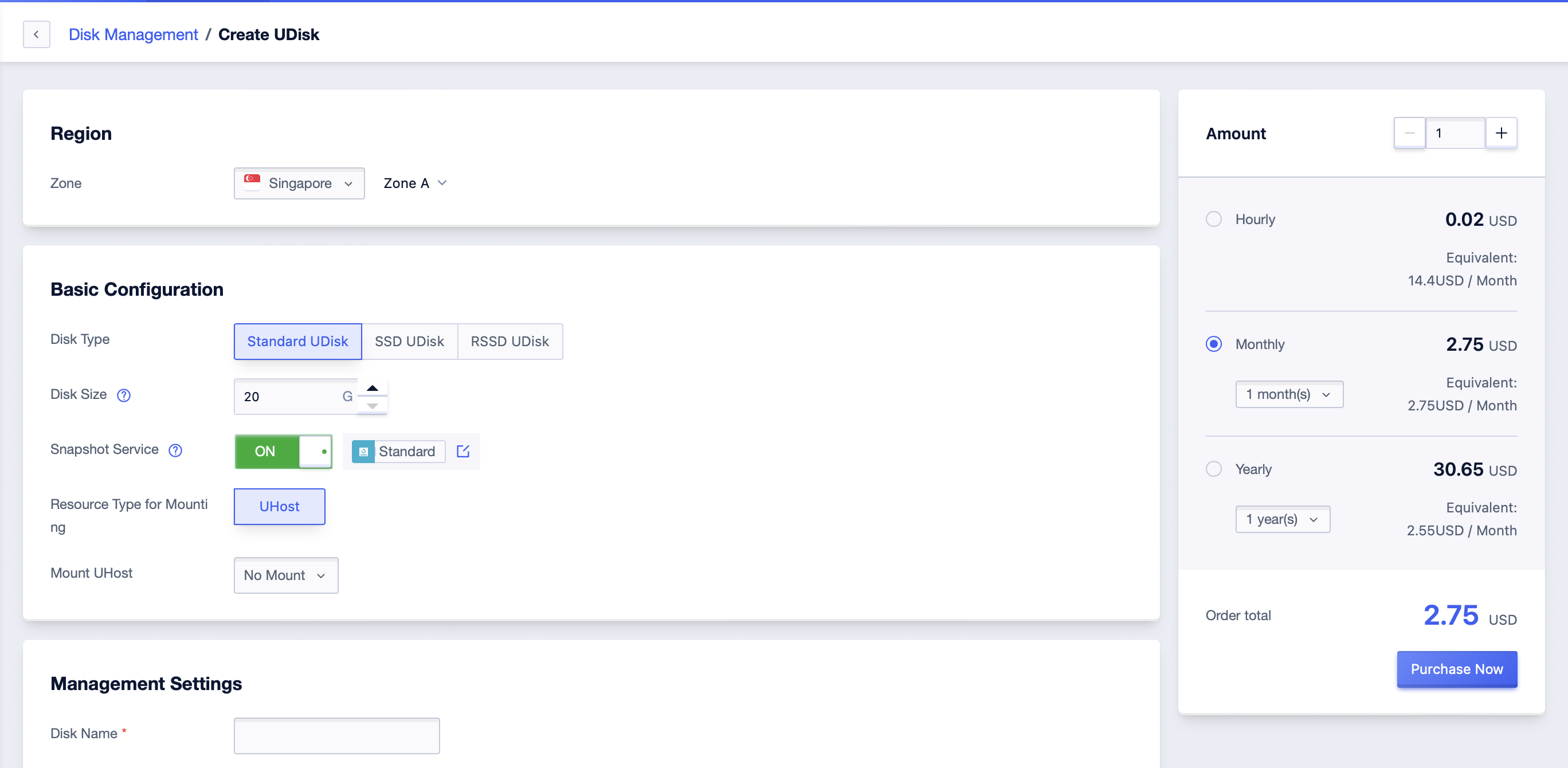

1. Enable the USnap while creating the hard disk.

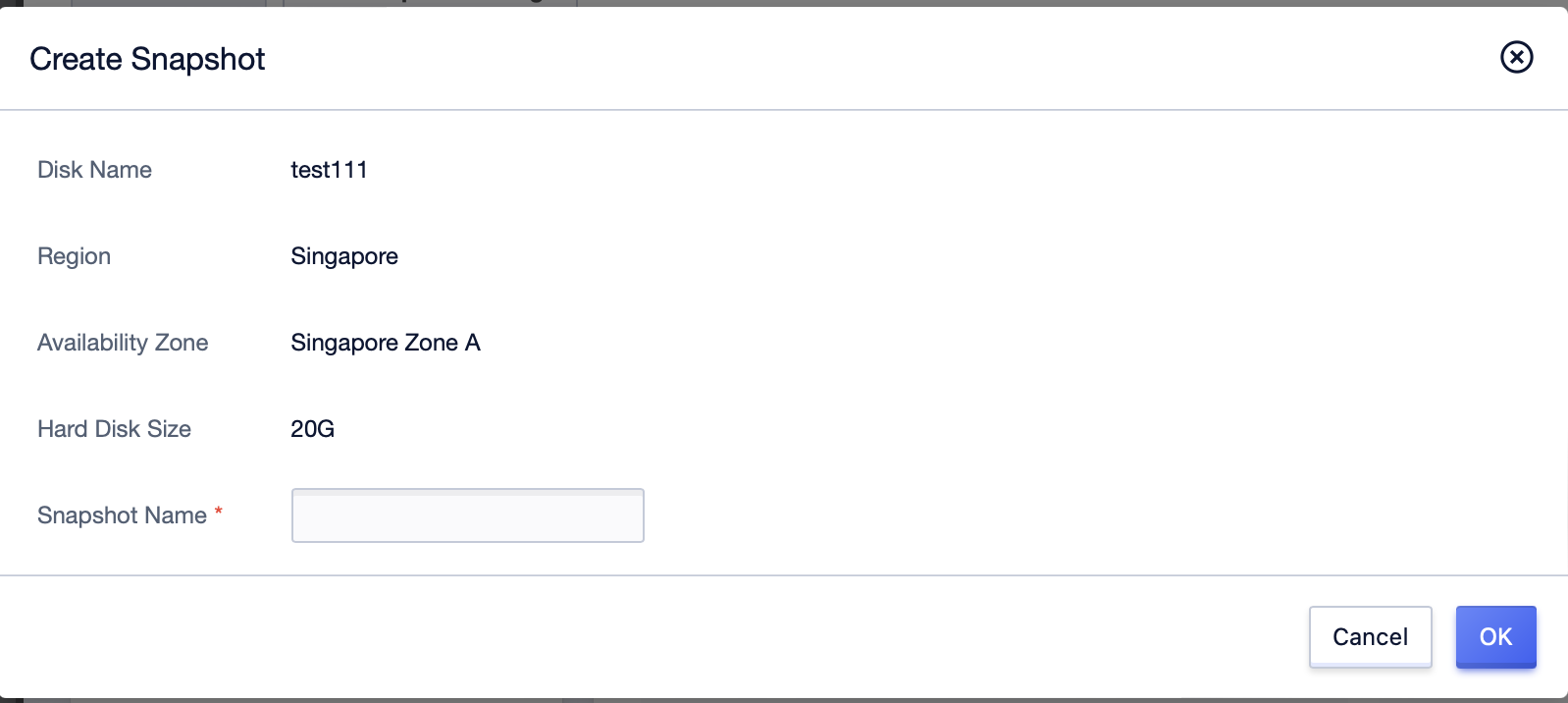

2. Upgrade the USnap when creating snapshots for cloud disks that have not yet enabled the service.

View Cloud Disk Snapshot

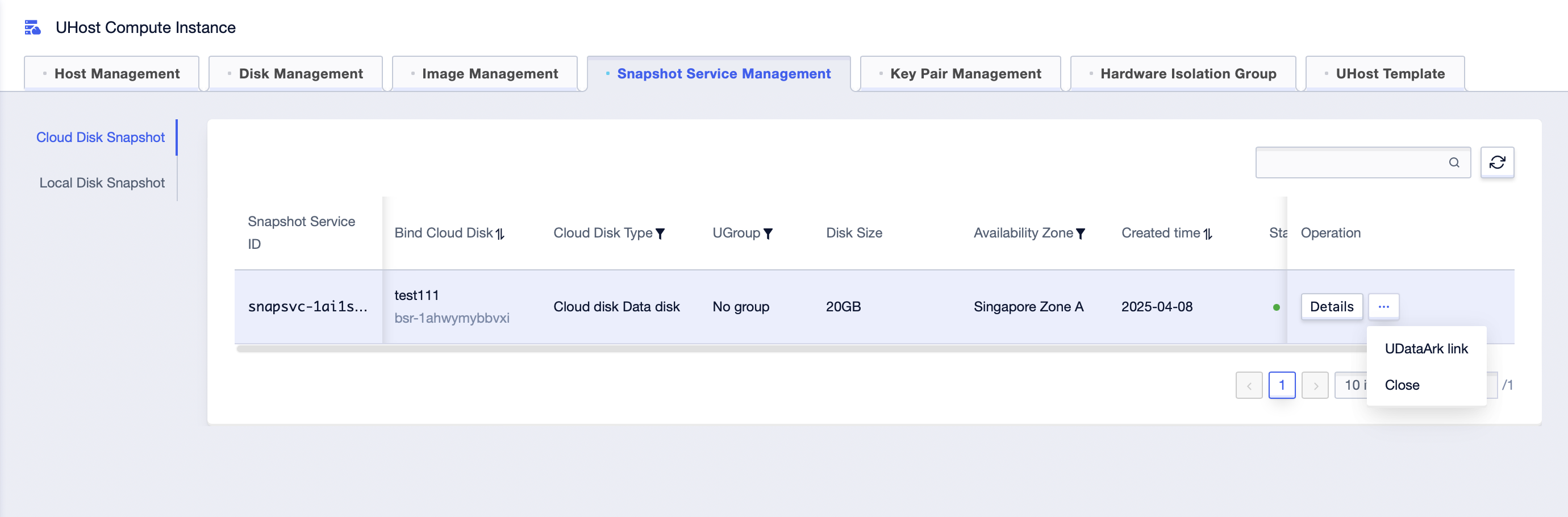

USnap Management Entrance

Enter the “Snapshot Management” page and select the “Cloud Disk Snapshot” tab, and searching for the disk name can help you quickly find the USnap management entrance for the disk.

In addition to displaying relevant information about the service at the management entrance of the USnap, you can also take the following actions:

1. Click “Details” to enter the cloud disk snapshot details page.

2. Click “Data Ark” to view the automated backup chain of Data Ark.

3. Click “Close Service” to end the USnap.

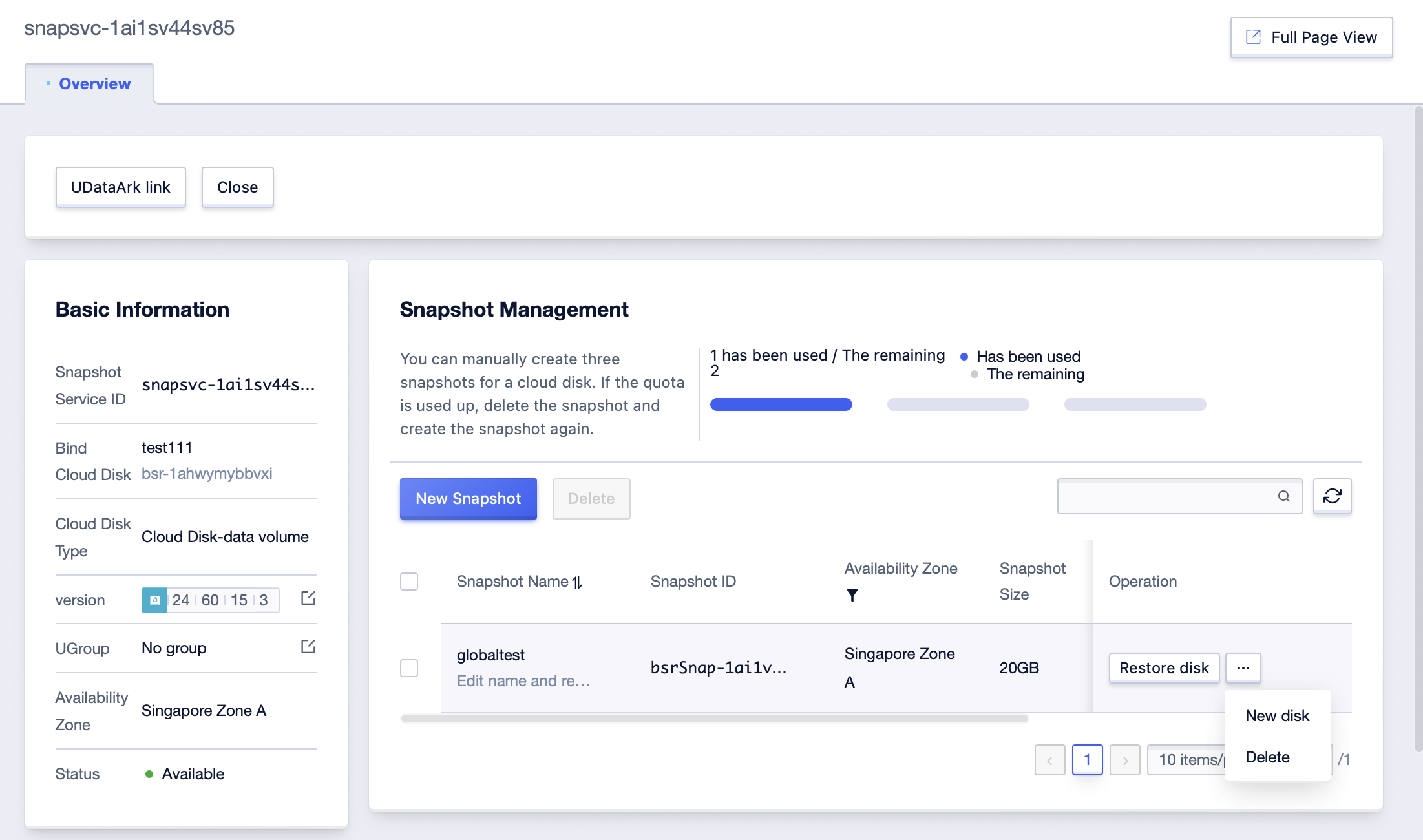

Cloud Disk Snapshot Details Page

The cloud disk snapshot detail page mainly displays detailed information about the cloud disk snapshot. You can take the following actions:

1. Click “Restore disk” to use the snapshot to restore the disk.

2. Click “New disk” to clone a new disk using the snapshot.

3. Click “Delete” to delete the snapshot.
